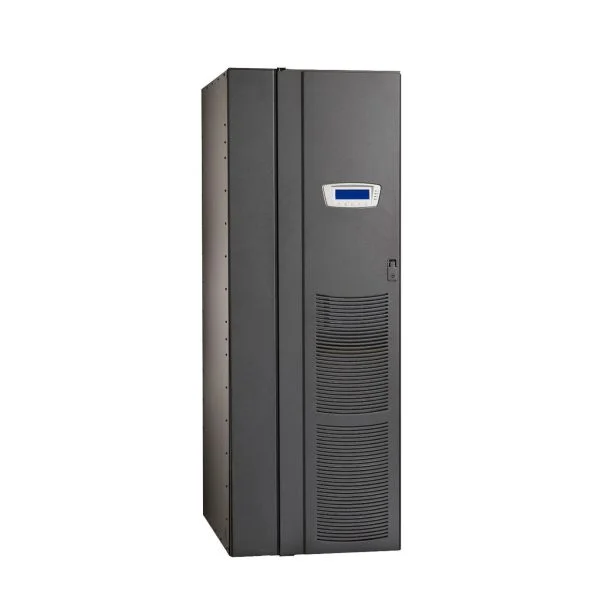

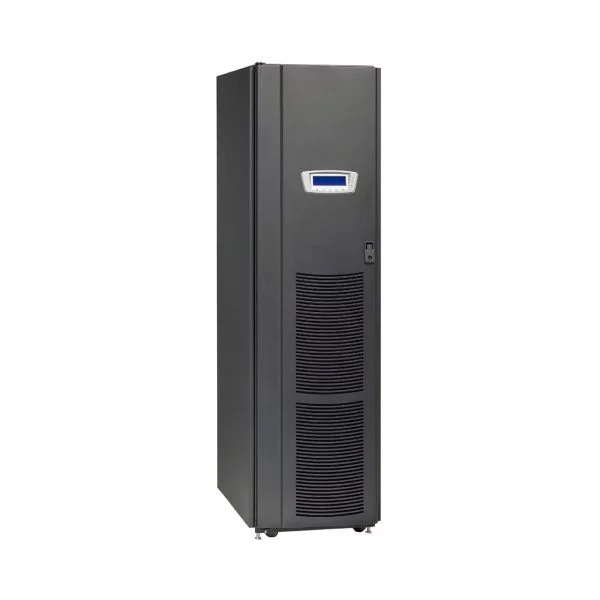

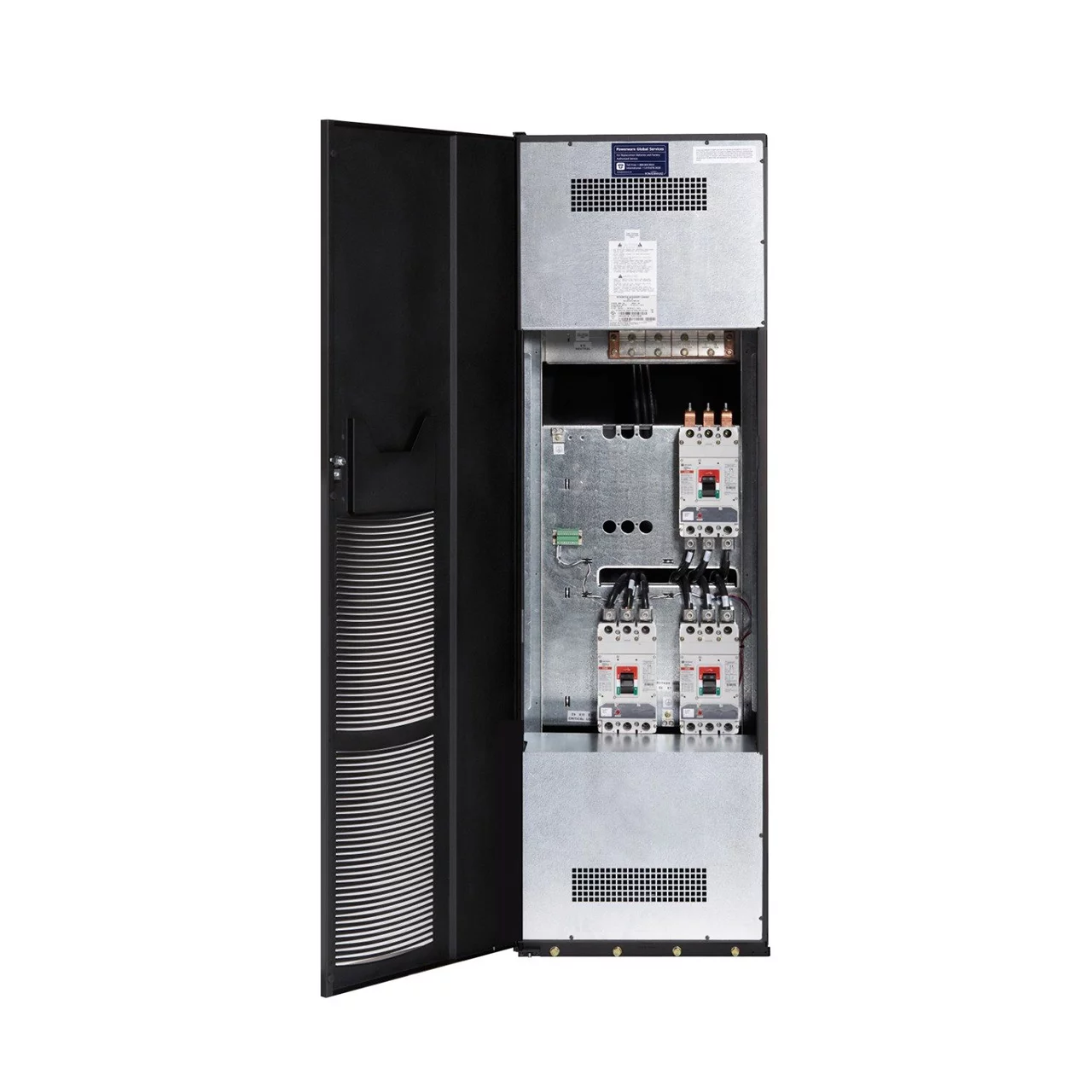

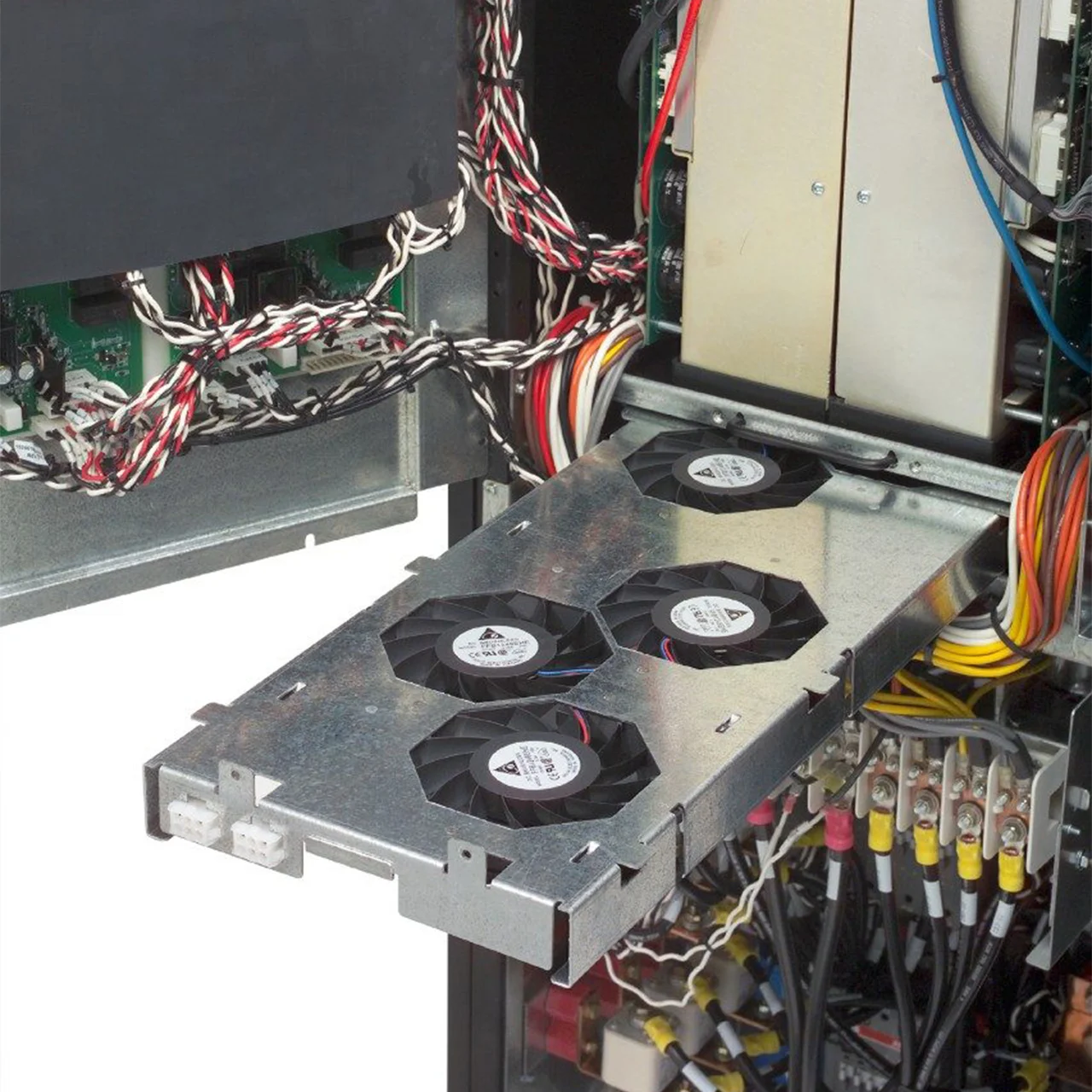

Eaton 9390 UPS 20-160 kVA

The energy-efficient Eaton 9390 UPS (formerly Powerware 9390 UPS) provides backup power and scalable battery runtimes in a small footprint for mid-size data centers, medical equipment and other critical systems. With the groundbreaking Energy Saver System, the 9390 operates at 99% UPS efficiency and can pay for itself in three to five years—without sacrificing reliability. Also included in the product line, the Eaton 9390IT UPS demonstrates superior efficiency and flexible distribution options previously unavailable in 40 kVA to 160 kVA UPSs.

Categories: ,
Share this product

Product Specification

Voltage 208, 380, 400, 415, 480, 600
Voltage Range +10% / -15%
Frequency Range 55-65 Hz
Power Factor 0.99 (min)
Input Current Distortion <4.5%
Soft start Capability Yes
Internal Backfeed Protection Yes
Broadcast Global Support Yes
Inverter PWM with IGBT Switching
Voltage THD <2% (100% linear load); <5% (non-linear load)
Load Power Factor Range Down to 0.9pf leading without de-rating

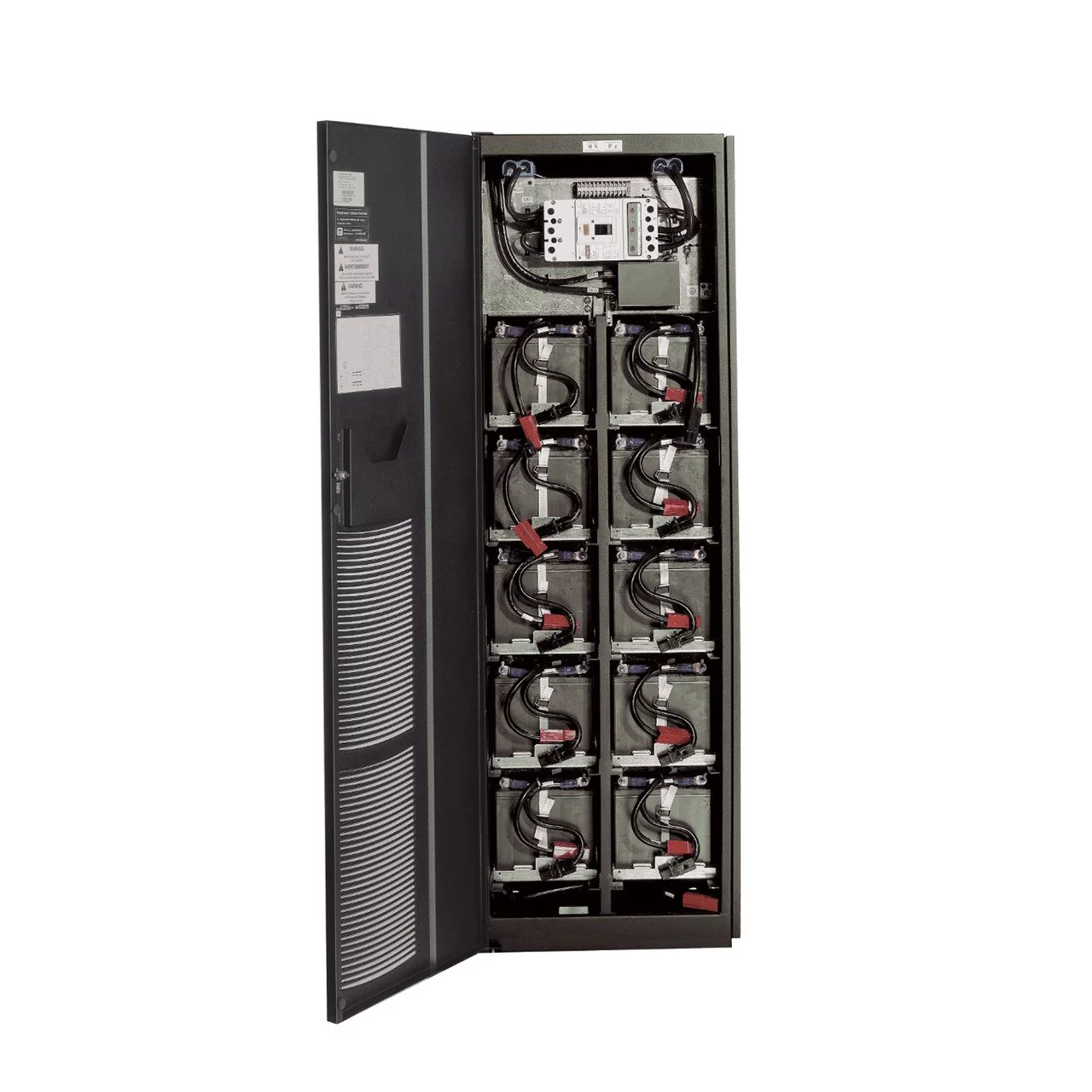

Battery Types VRLA, AGM, Gel, Wet,
Battery Voltage 384-480V
Charging Method ABM Technology
Safety UL1778, cUL
