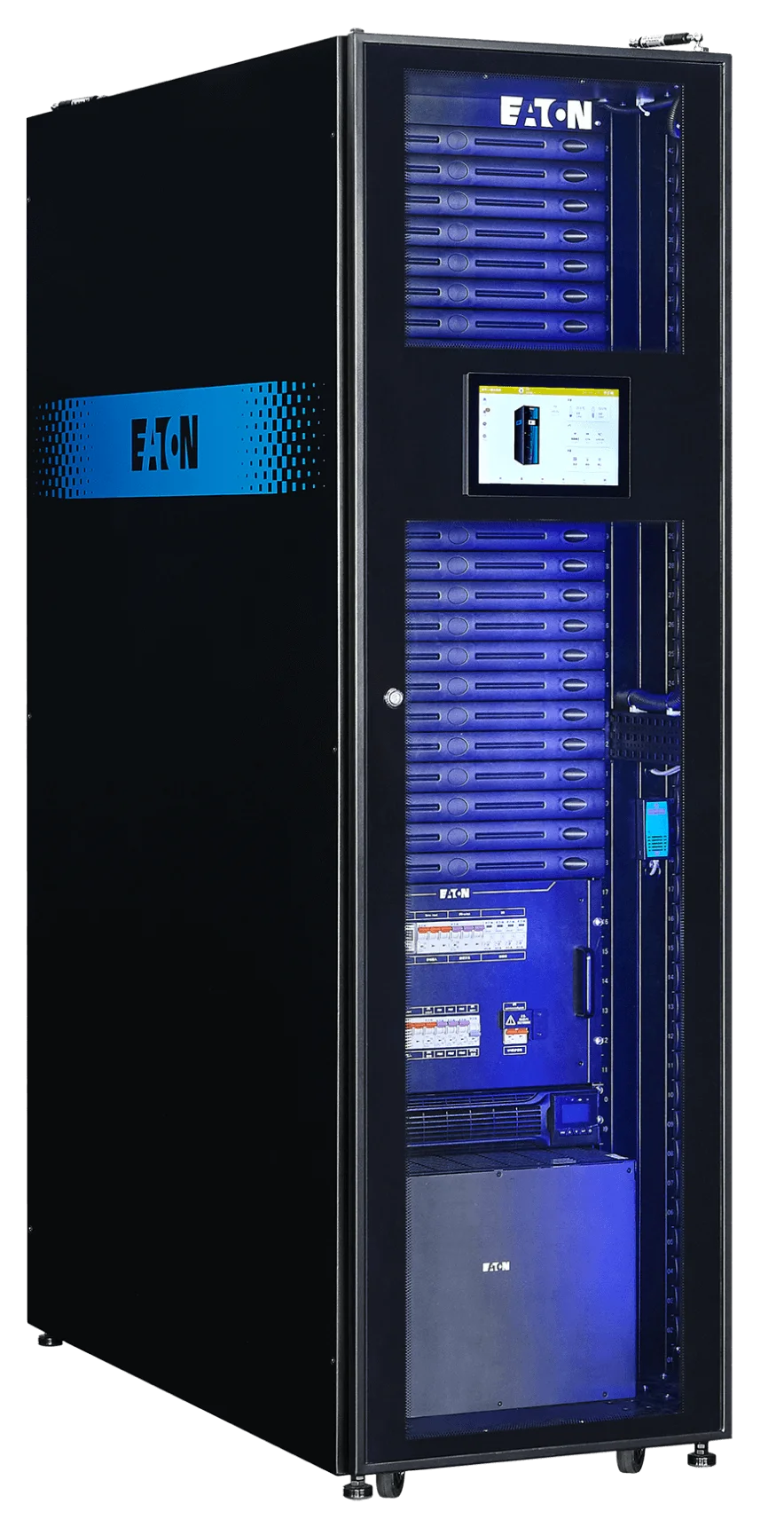

Eaton Micro Data Center iCube

The Next Generation
of IT Solution

Eaton Micro Data Center (MDC) or known as Eaton iCube, provides all-in-one integrated solution with high reliability, low energy consumption, easy maintenance, and high scalability for power supply, power distribution, thermal energy management, environmental monitoring, system connection, remote and distributed management in one system.

Applications

Quick Deployment

Pre-configuration saves more than 65% of time with on-site installation compared to a conventional solution, resulting in a faster installation, within 1- hour, for single rack.

High Reliability

Rack enclosure is earthquake rated, equipped to support emergency operations with a smart pop-up door system and fire suppression system. Fully enclosed hot and cold aisles help reduce dust and noise, improving system availability.

Precision Cooling

CE certified in-rack air-conditioning circulates air quickly due to proximity to heat sources, eliminating the need for room-level cooling system and reducing total infrastructure costs.

Power protection

High efficiency UPS (3-20kVA) provides best in class protection for all your critical applications.

Product Specifications

Single Rack
Model
iCube
Basic model without A/C, HMI
Yes
Standard model with A/C, HMI, airflow containment
Yes
A/C capacity
2kW/4.2kW
A/C indoor and outdoor unit drop
-5M/+20M
Emergency heat dissipation
Standard: Intelligent automatic door opening
UPS option
3kVA/6kVA/10kVA
Rack door
Vent door/ Tempered glass door
Rack width (footprint)
600 / 800mm
Rack static load
1860kg
Anti-Seismic
Class 8
System installation time
<1h
HMI
10.1 inch
Environmental monitoring
Temperature and humidity, smoke, water sensor, access control
Fire fighting linkage
Yes (optional)
APP support
Yes (optional)
Multi-point centralised management
Yes (optional)
Web
Yes (optional)
Multi-Rack
Model
iCube
PUE
1.34 *
System protection level
IP50
Airflow containment
Cold & hot
IT rack quantity
Standard 2-7 Rack, 8-10 rack need customization
Rack static load
1860kg
Anti-Seismic
Class 8
System installation time
<1D
A/C capacity
8.1kW, support N+X
A/C indoor and outdoor unit drop
-5M/+20M
A/C installation type
Rack mounted
Emergency heat dissipation
Standard: Intelligent automatic door opening
UPS option
10kVA/15kVA/20kVA
UPS application
N/N+1/2N
Environmental monitoring
Temperature and humidity, smoke, water sensor, access control
Fire fighting linkage
Yes (optional)
APP support
Yes (optional)
Multi-point centralised management
Yes (optional)
Web
Yes (optional)
