Product Specification
| Topology | On-line double conversion withPFC (Power Factor Correction) system |
| Configuration | Rack/Tower |
| Rate (VA / Watt) | 5000/4500 |
| Dimensions (height x width x depth, mm) | 440 x 130 x 685 |
| Weight (kg) | 48 |
| Input Voltage Range | 176-276V without derating (up to 100–276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Short Circuit Current | 90 A |
| 90 A | <5% |
| Voltage | 200/208/220/230/240V +/– 1% |
| Voltage THD | <2% |

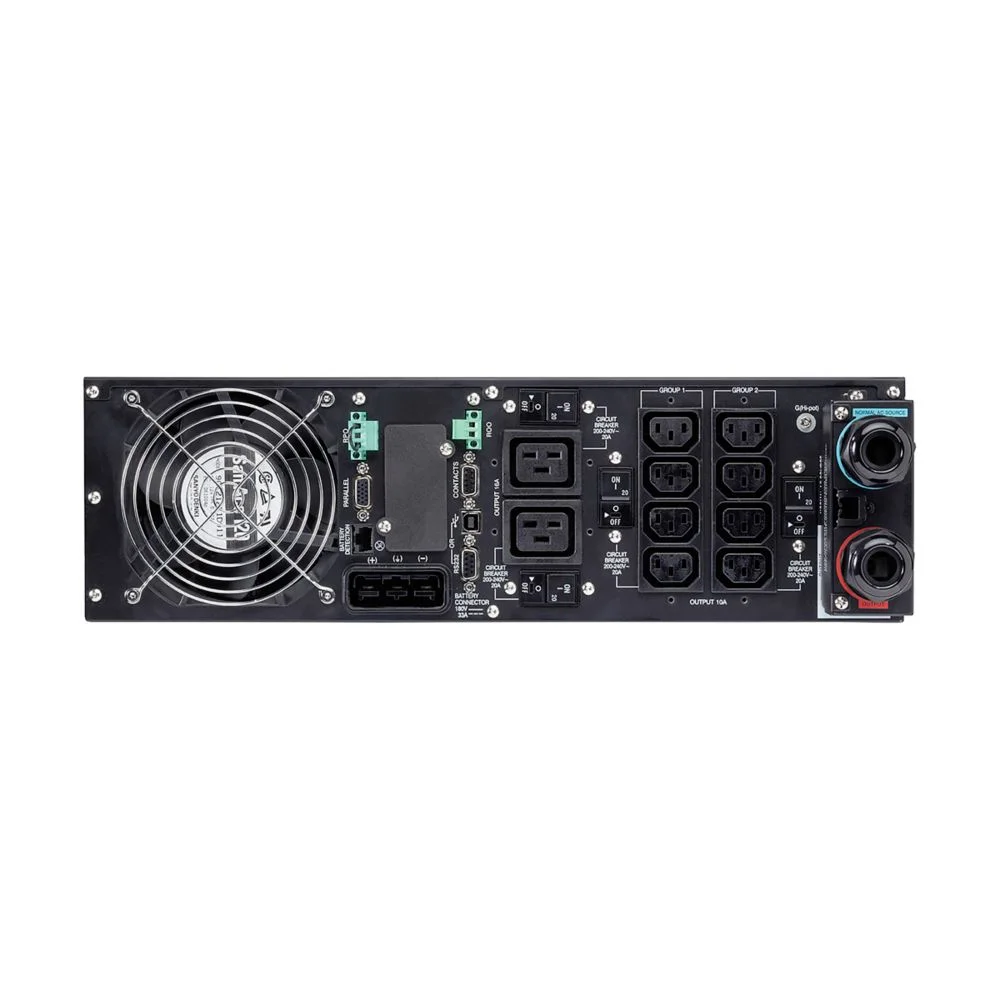

| Output Receptacle | (8) IEC-320-C13 (2) IEC-320-C19 Hardwired |
| Noise heard | <45dB |
| Operating Temperature | 0 to 40 ° C |
| Security sign | IEC / EN 62040-1, UL 1778, CSA 22.2 |
| EMC mark | IEC / EN 62040 -2, FCC Class A, IEC / EN 62040-3 (Performance) |
