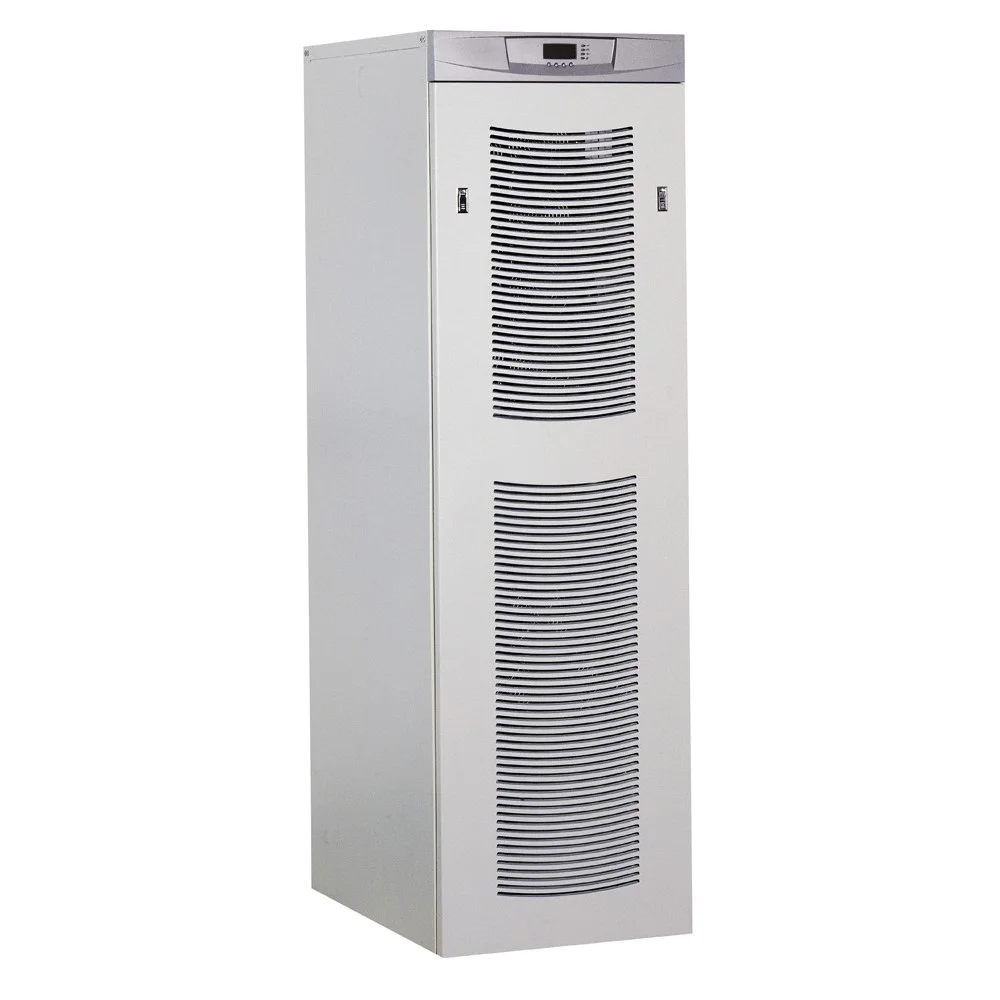

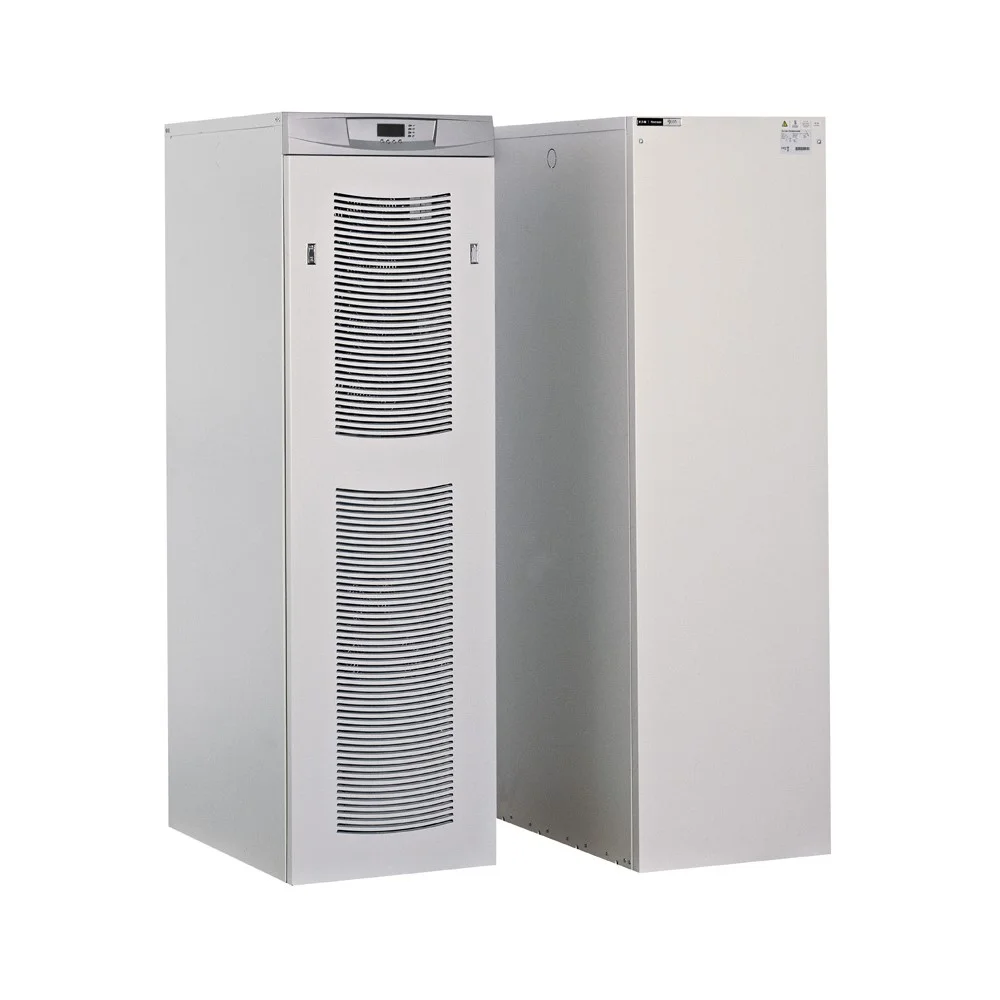

Eaton 9155M (8-30 KVA)

Standalone UPS with 3-phase input
External battery cabinet

Share this product

Product Specification

Nominal voltage measurement (configurable)380, 400, 415 V 50/60 Hz
With an internal transformereg. 230, 400, 440, 480, 690 V
With an external transformereg. 230, 440, 480, 690 V
Input voltage rangeLow -20% at 100% load / - 50% at 50% load without battery discharge; High + 10% / max + 20%
Input frequency range45-65 Hz
nput power factor0.99
ITHD Inputless than 4.5%
Soft start capability (starting silently)Yes
Nominal voltage measurement (configurable)220, 230, 240V 50/60 Hz
With an external transformereg. 110,115, 208 V
UTHD Output<3% (100% longitudinal load); <5% (reference non-longitudinal load)
Allowable load power factorlagging 0.7 - preceding 0.8
Battery typeNiCd, maintenance free VRLA battery
Charging methodABM or Float technology
Temperature compensationOptional
Communication X-Slot2 communication niches
Serial portAvailable 1
Input / output releases2/1 programmable
Safety (CB certifiedIEC 62040-1, IEC 60950-1
EMCIEC 62040-2, IEC 60945
PerformanceIEC 62040-3
ApprovalCE, DNV Type Approval, BV Type Approval and ABS PDA up to 15kVA
Other classification survey reportsUpon request
